ADO A20F XE Electric bike AOD A20F+ upgrade version | Install throttle, Motor power can unlock to 500W, 36V, 10.4Ah battery, 45km~60km | UK & EU & US shipping


SKU: ADO-A20F-XE Categories: ,




Features Compliance with EU regulations
Mode support mode pedal /pedal assist , no accelerator
General Brand A Dece Oasis
Type 20*1.95 Inches
Model A20F XE CE Version
Rated Power 250W
Torque 40 N.m
Motor Type Hall Brushless Gear DC Motor
Overall unit 1550*530*1100mm

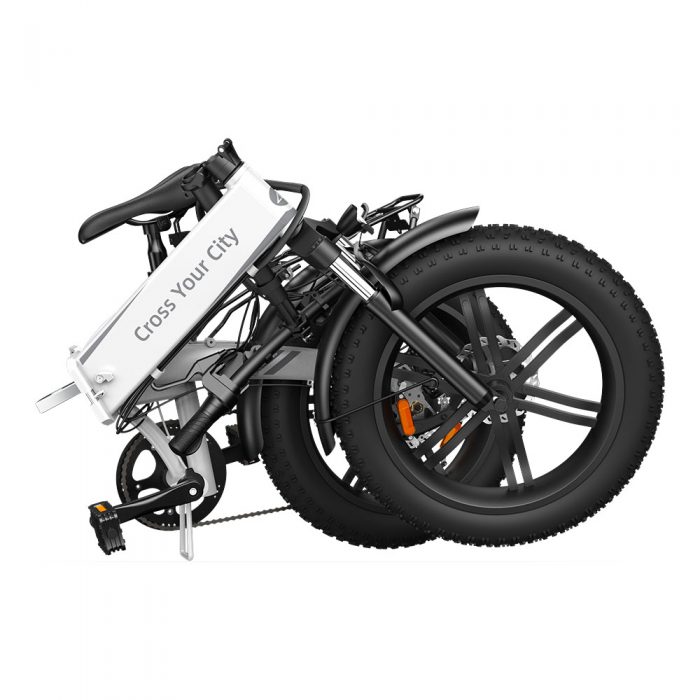

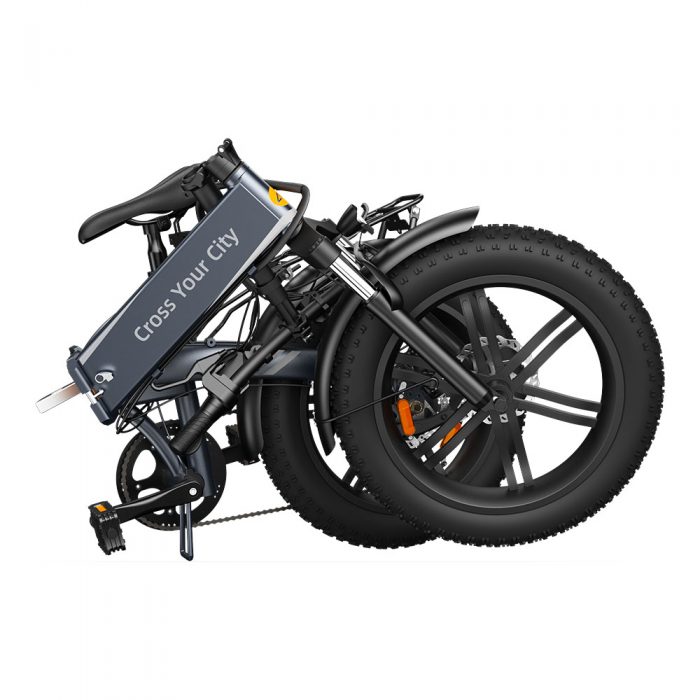

After folding 900*430*700mm
Color black/white / gray
Vehicle Performance Max. Speed 45km ~ 60km
Transmission Shimano 7 speed
Shock-absorption Front fork and saddle tube double Shock-absorption
Brake Mechanical disc brake
Battery Rated Voltage 36V
Charge cut-off voltage 42V
Rated Capacity 36V10.4AH
Charging time 6-7 hours
Charging Temperature 0~40°C
Battery ManagementSystem Over-heating, Short circuit, Over- current, Over-charge protection
Input Voltage 100~240V, 50/60Hz
Assisting range  <80km
Type of batteries Removable portable charging battery

Overall unit:1740*530*1200 mm
After folding:980*450*770 mm
Temperature: -10~40°C

Speed: 25km/h (Unlock mode reach to 35km/h)
