Description

.

Specification:

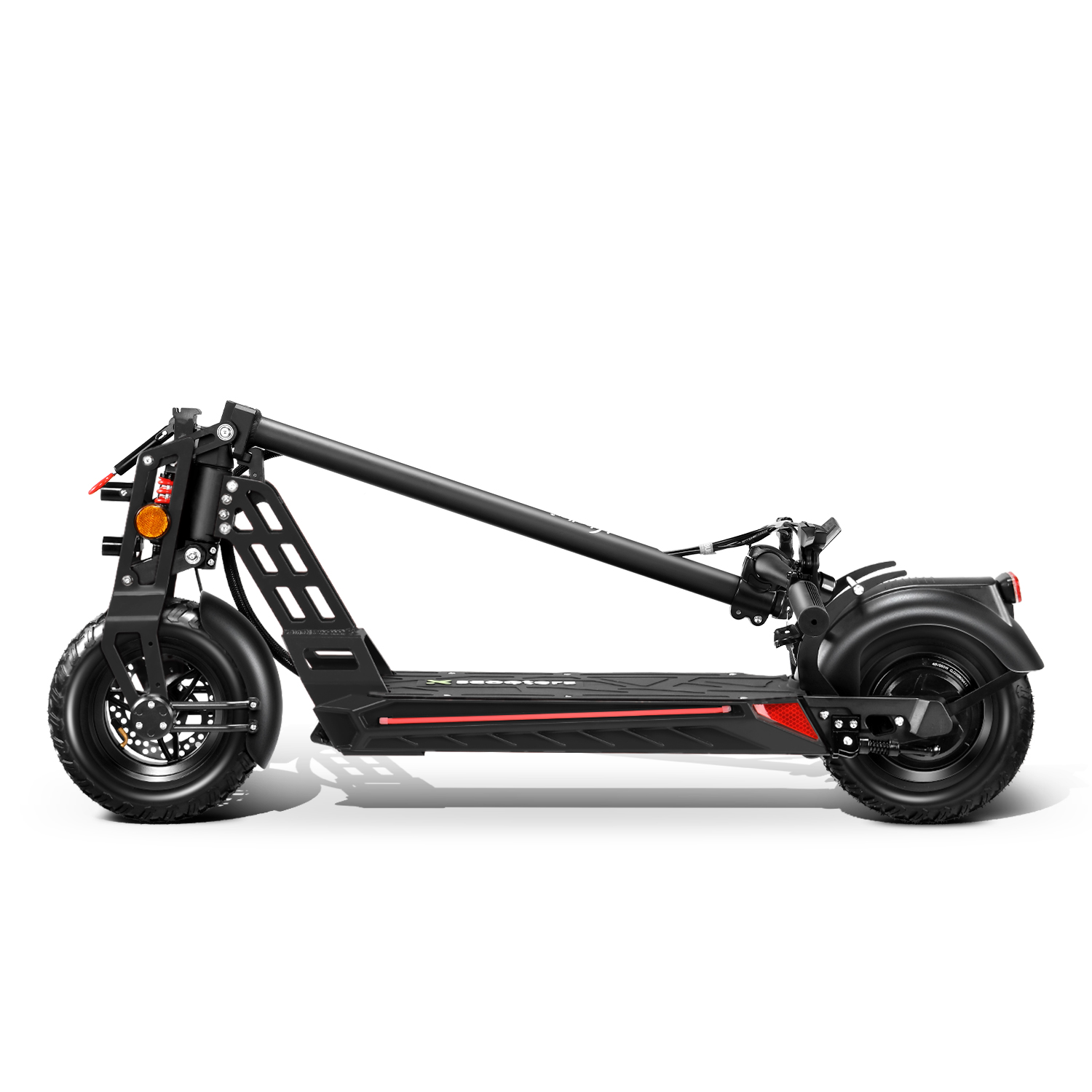

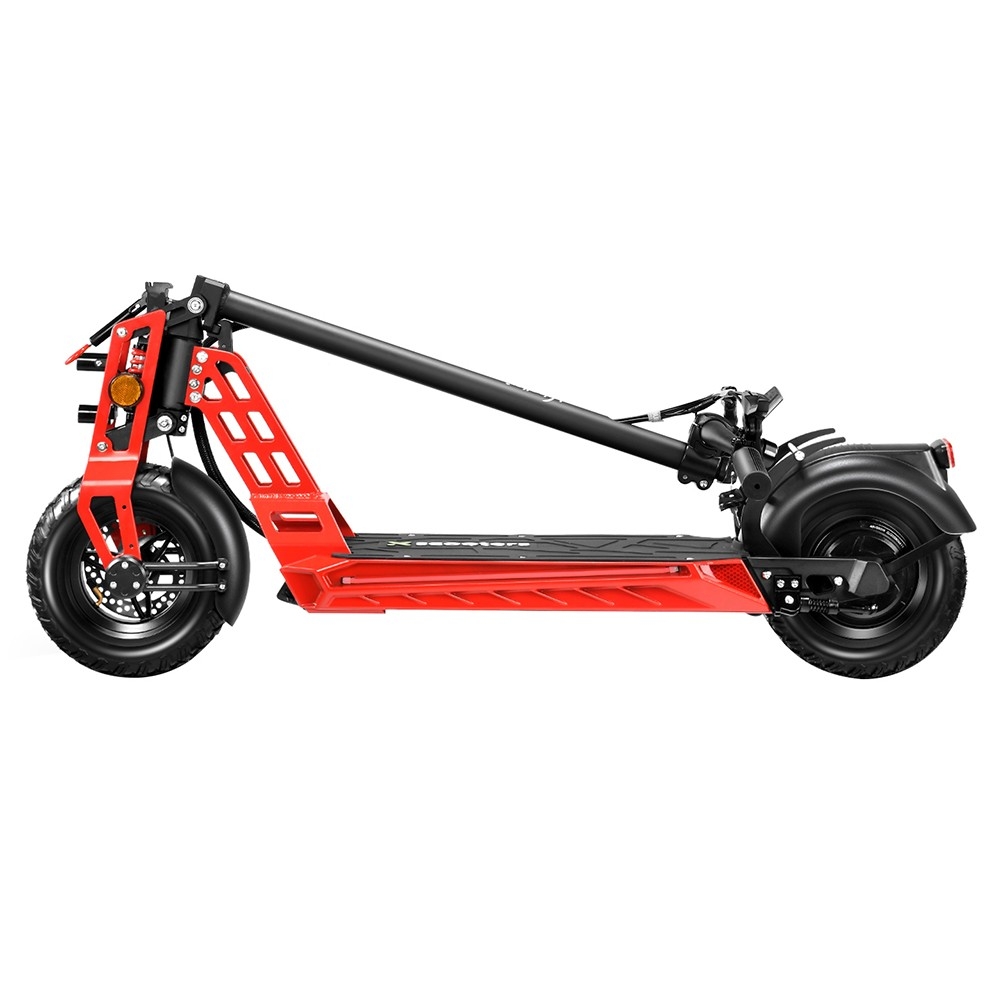

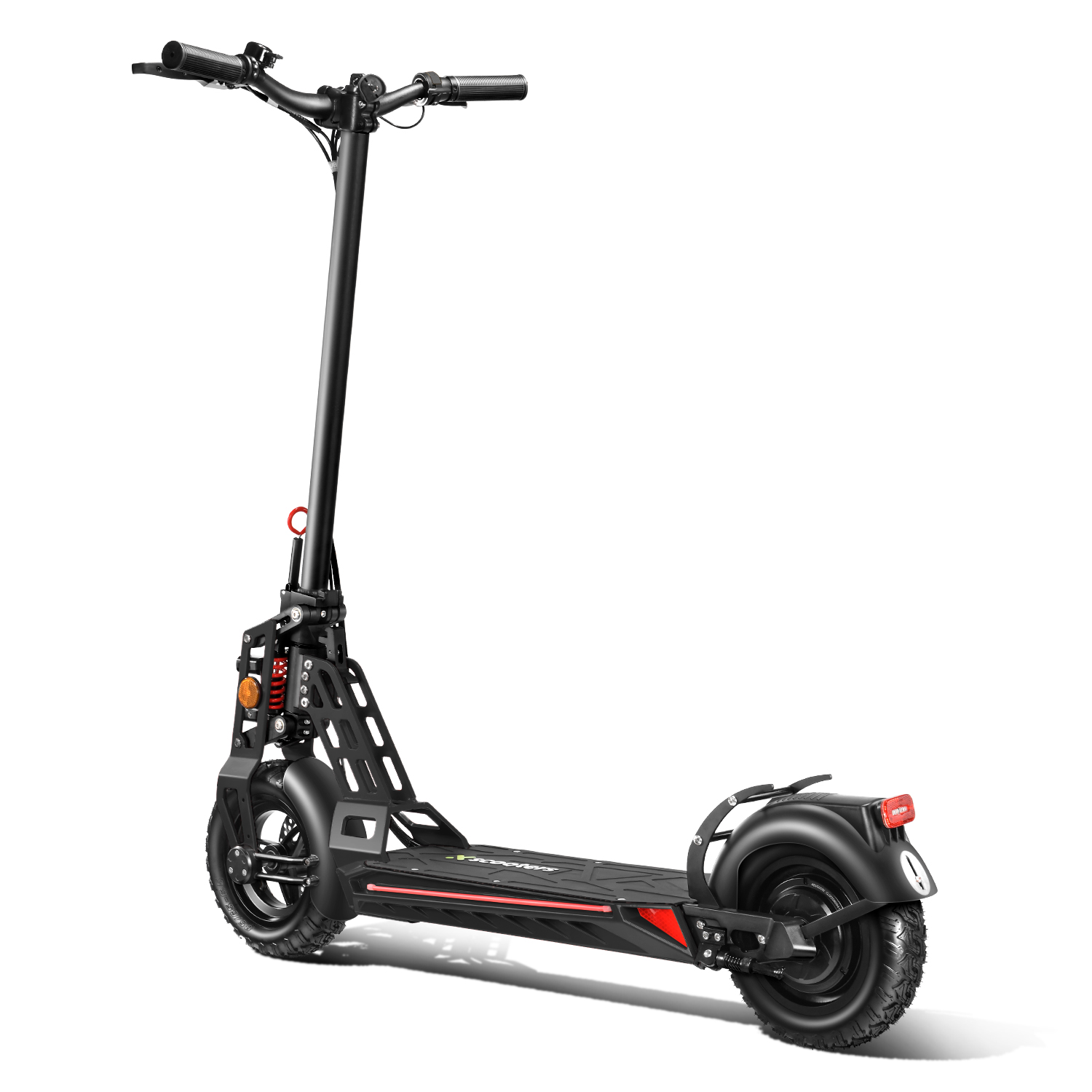

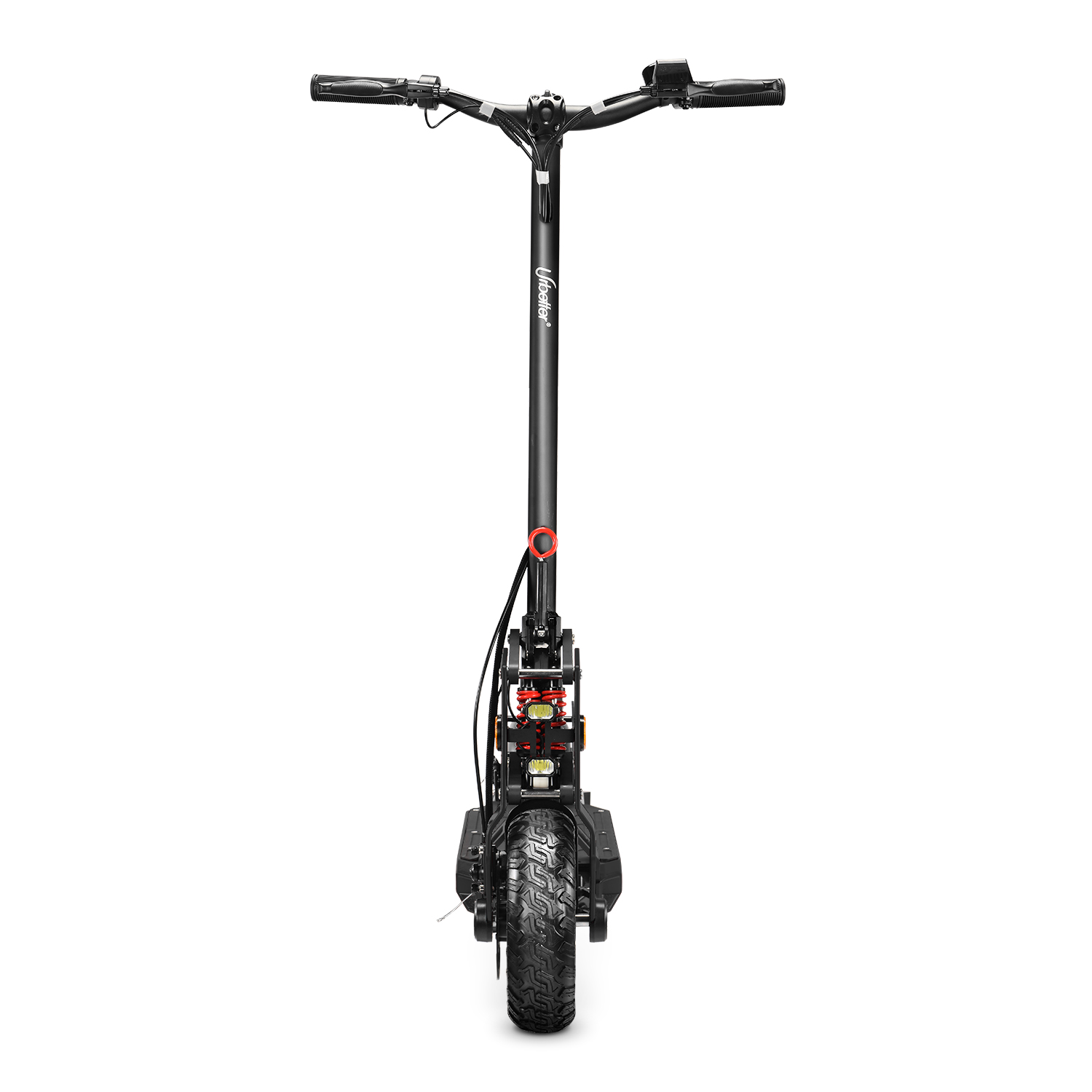

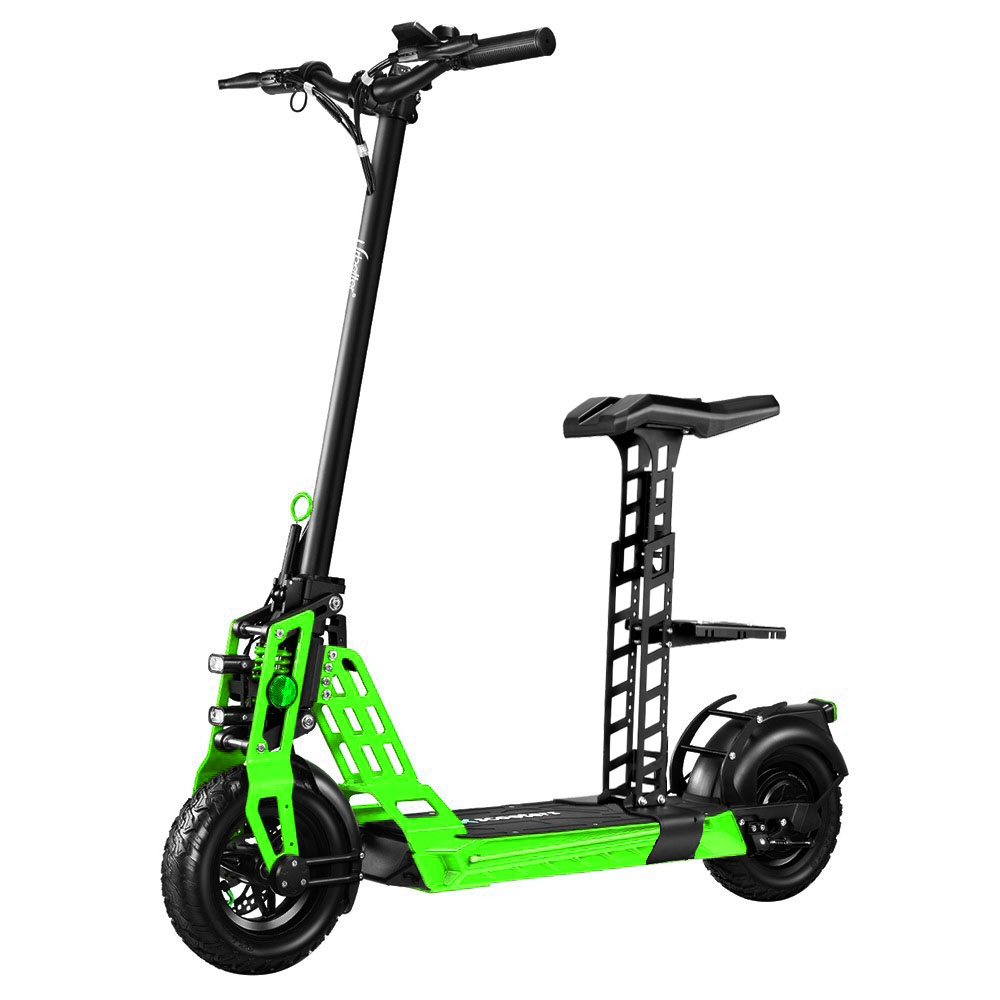

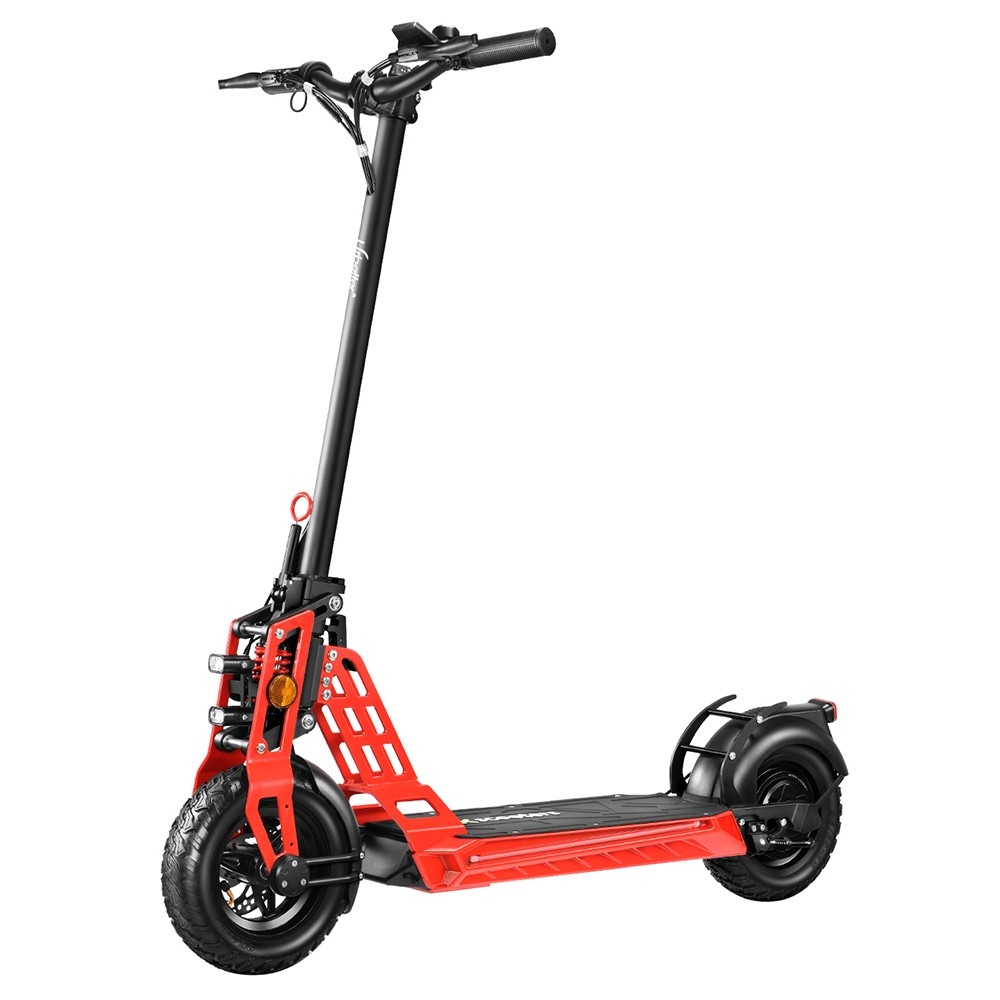

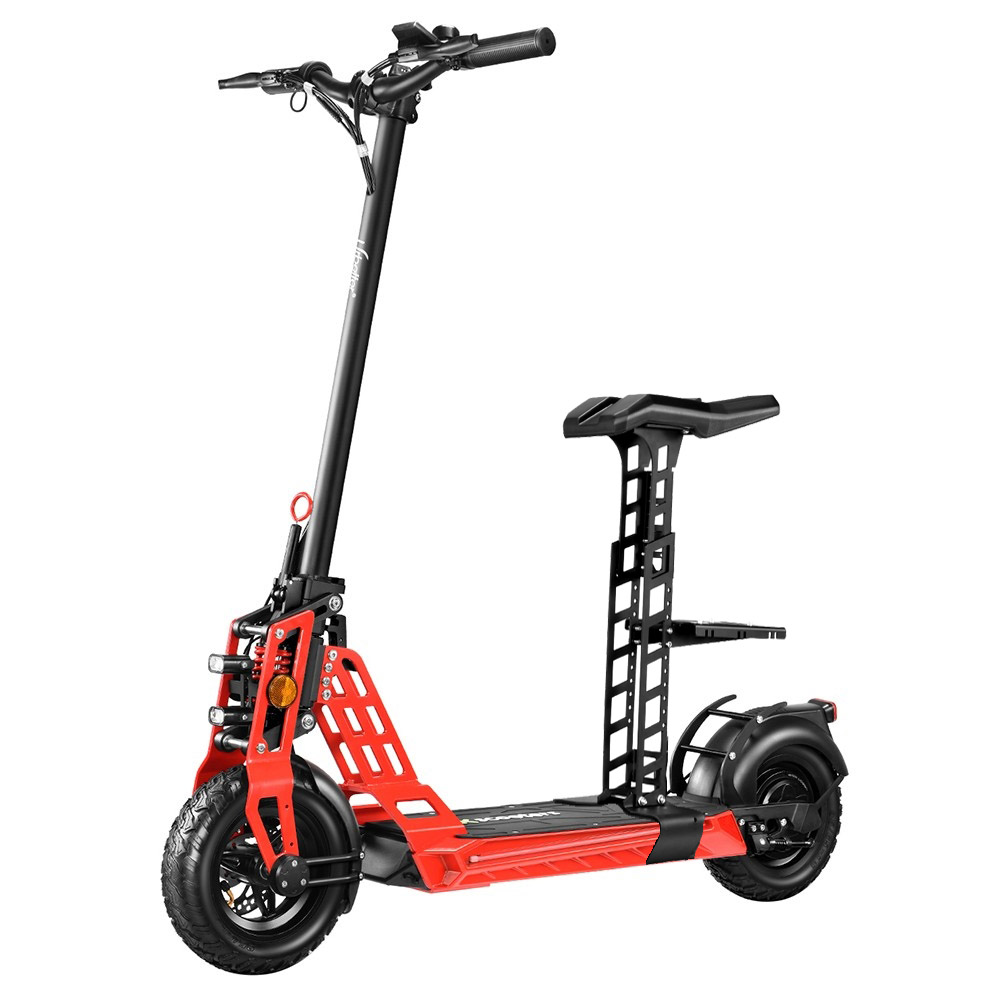

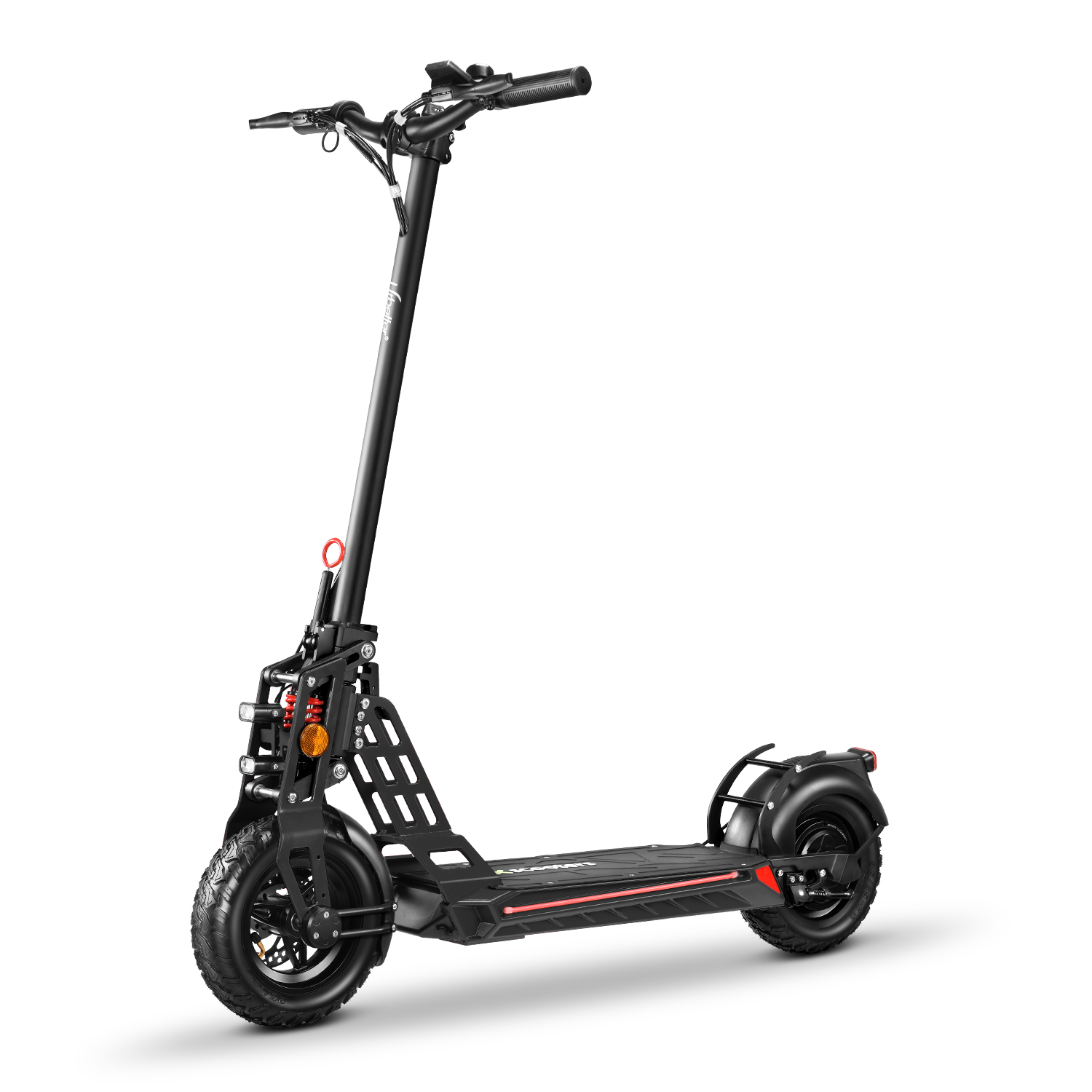

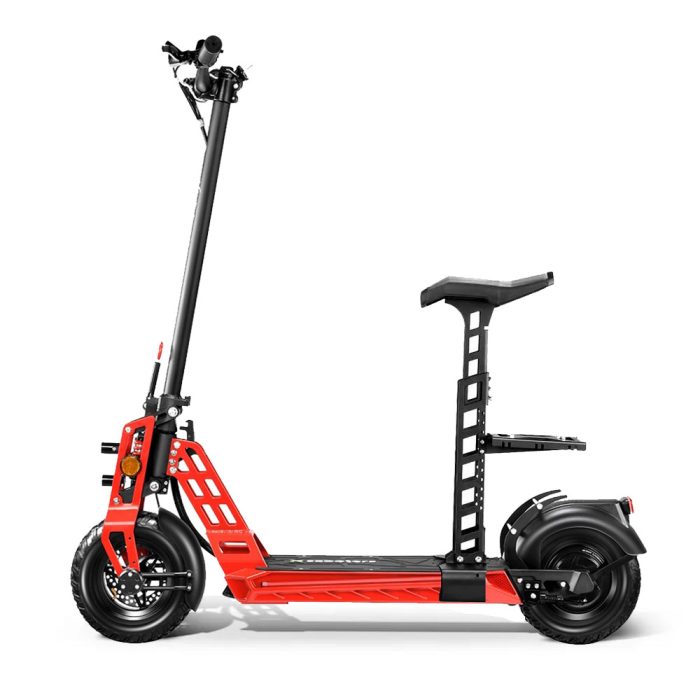

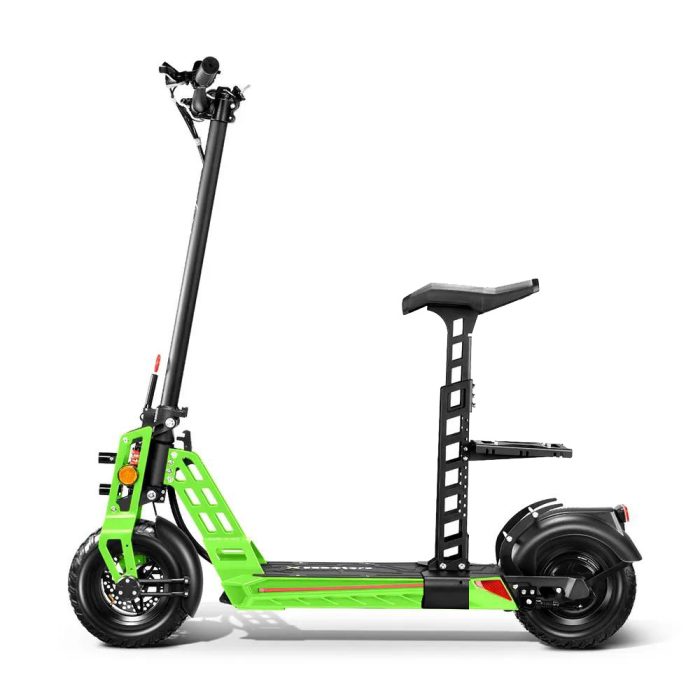

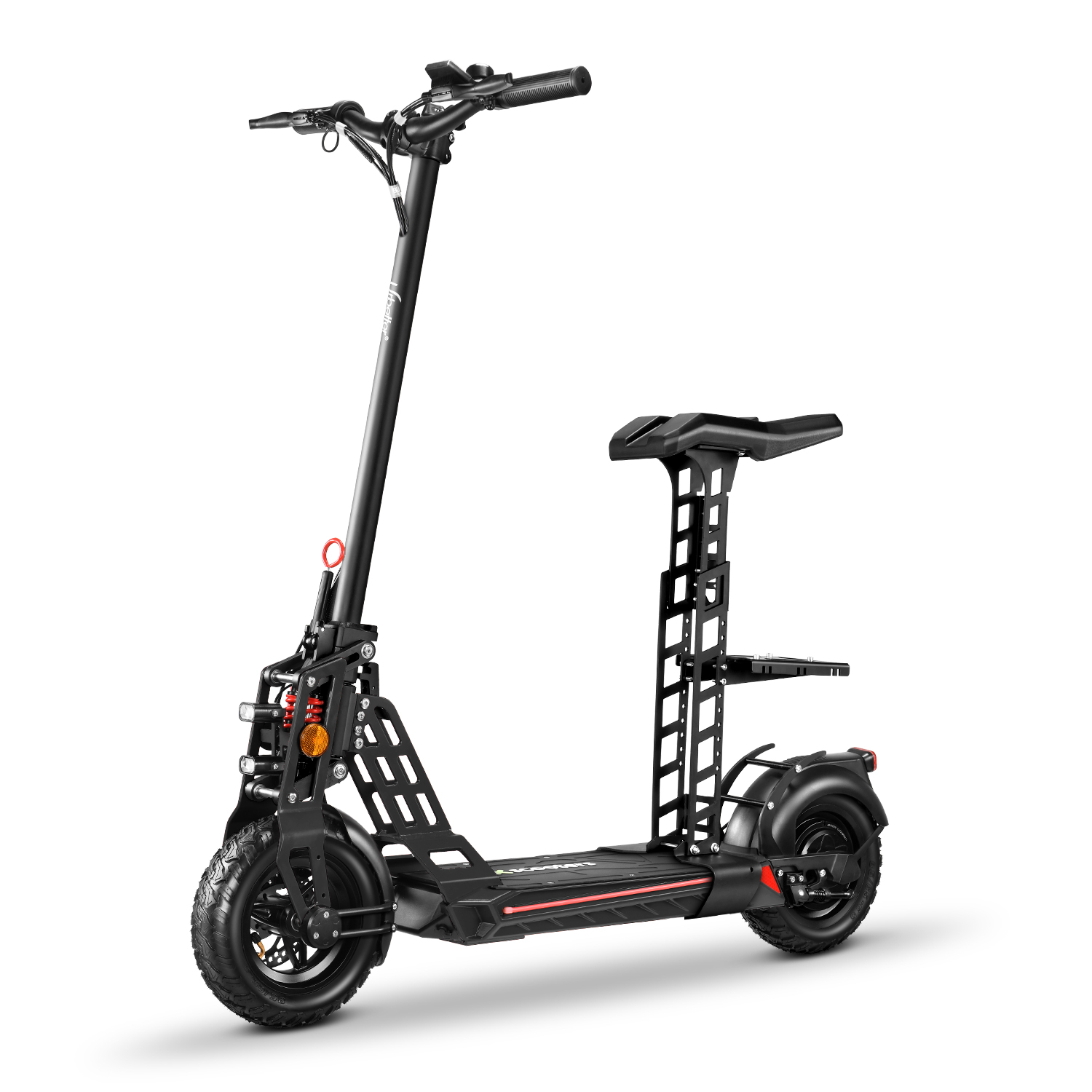

Model: AOVO xScooter X1

Body color black
Body material 90% aluminum alloy + 10% iron
Packing box size (L/W/H) 1180*220*520 mm
Product folded size (L/W/H) 1160*580*480 mm
Product expansion size (L/W/H) 1160*580*1180 mm
Chassis height 100 mm
Applicable height 150-200 cm
The net weight of the whole vehicle is 25 kg
The gross weight of the whole vehicle is 28.5 kg
The limit load of the car body is 120 kg
Measured body weight 80 kg
The measured battery life is 40 km
The measured terrain is relatively flat cement road (slope not greater than 10)

Vehicle parameters

Maximum speed The factory default setting is 25KM/H, and the customer can adjust it to 40KM/H
Cruising range 30-35KM/H
Applicable terrain Hardened road surface, flat dirt road surface, slope below 30 degrees, no higher than 10CM
, No more than 8CM groove
Operating temperature -10° to 40°
Waterproof grade IPX4

controller

Voltage 48V
Overcurrent protection value 18 A
Undervoltage protection value 39 V
Motor (wheel) parameters
Rated power 500W
Rated voltage 48 V
Rated current 10±0.5A
No-load current ≤1.1A
No-load speed 850±20 rpm
Front wheel size 11 inch pneumatic tire
Auxiliary rear wheel size 11 inch pneumatic tire

Battery Pack Parameters

Battery / Cell Brand Yongkang Feike Electronic Technology
Battery capacity 13 AH
Rated voltage 48 V
Charging input voltage 54.6 V
Battery rechargeable times ≥600
Charger parameters
Rated power 109.2W
Rated input voltage 100V-240V
Rated current 2 A
Charging time 6-8 hours
Nominal output voltage 54.6 V

headlights

Operating voltage 48 V
Operating current 0.025A
taillight
Operating voltage 48 V
Operating current 0.012A
