Description

Kukirin T3 Kukirin T3 Kukirin T3 Kukirin T3 Kukirin T3 Kukirin T3 Kukirin T3 Kukirin T3 Kukirin T3 Kukirin T3 Kukirin T3

Specification

General Brand: Kukirin
Type: Electric Scooter
Model: T3
Basic Parameter Max Load: 120kg
Speed: 45km/h
0-gear, 1st, 2nd, 3rd: 6km/h, 15km/h, 30km/h, 47km/h
0-gear, 1st, 2nd, 3rd (75kg load): 6km/h, 15km/h, 30km/h, 45km/h
Mileage: 58km
Climbing Ability: ≤20° slope

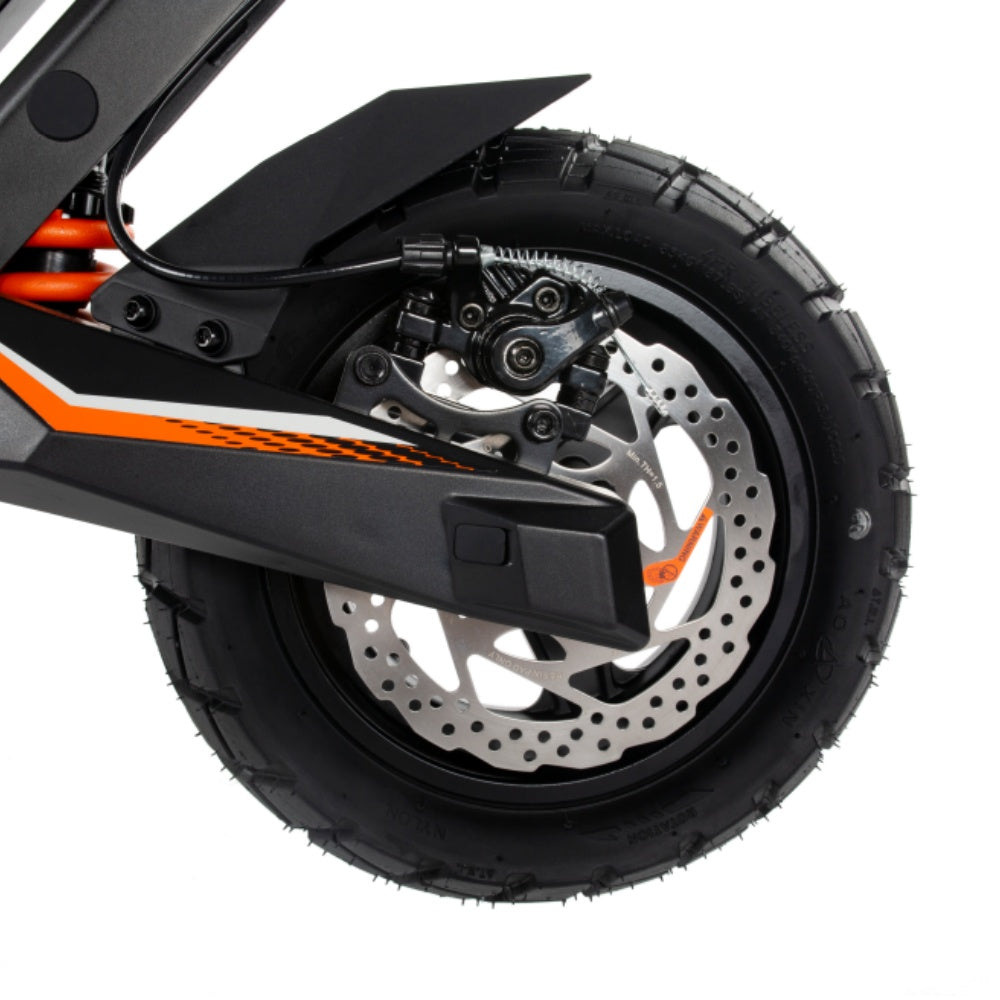

Brake System: Front and rear disc brake & power off brake
Brake Distance: 5-12m
Waterproof Level: IP54
Frame Material: Aluminum alloy + iron
Motor Motor Type: Hall brushless DC motor (rear wheel single drive)
Voltage: 48V
Accelerate Mode: Sine wave
Rated Power: 800W
Instantaneous Maximum Power: 1000W
Max Output Torque: 26N.M/S
Battery Battery Model: 18650 Lithium battery
Battery Voltage: 48V
Single Cell Capacity: 2600mAh
Battery Pack Capacity: 15.6Ah
Standard Power Consumption: 0.52KW.H
Battery Protect System: Battery protective board (BMS)
Charger Input Voltage: 100-240VAC~50/60Hz
Input Current: 2.5A Max
Output Voltage: 54.6V
Output Current: 2A
Charging Time: 7-8h
Shock Absorber System Front Shock Absorber: Spring shock absorption
Rear Shock Absorber: Spring shock absorption
Light System Headlight Type: LED
Headlight Power: 6W
Headlight Illumination Angle: 45°
Headlight Illumination Area: 5㎡
Turn Light: Yes
Taillight: Yes, the taillights are on when the headlight is on, taillight flash when breaking.
Instrument Type: LED
Display Material: Display cover is ABS
Size: 97*55mm
Show Content: Speed/power/mileage/cruise control/speed mode/start mode/light mode/mileage unit mode
Function Setting:
1. Power button:
Press for 3 seconds to turn on/off,
Press once to turn on/off the headlights + spotlights + taillights,
Press twice in a row to switch between single mileage and total mileage;
Press and hold the brake + press 6 times in a row to release/restore the speed limit. (Note: When the signal is triggered, the buzzer beeps and the brake handle is released.)
2. RGB button:
Press for 3 seconds to turn on the ambient light,
Press once again to switch the lighting effect of the ambient light. There are 4 modes in total. (When the signal is triggered, the buzzer will beep.)
3. M button:
Press once to cycle the gear,
Press 3 times in a row to switch between kilometers/miles,
Press 4 times in a row to turn on/off the cruise control,
Press 5 times in a row to switch between zero start/non-zero start mode. (When the signal is triggered, the buzzer will beep.)
4. and right turn signals:
Press once to turn on/off the left and right turn signals. (When the signal is triggered, the buzzer will beep.)
Weight & Size Product Weight: 25.5kg
Package Weight: 30.5kg
Product Size(L x W x H): 1230*640*1260mm (Expend)

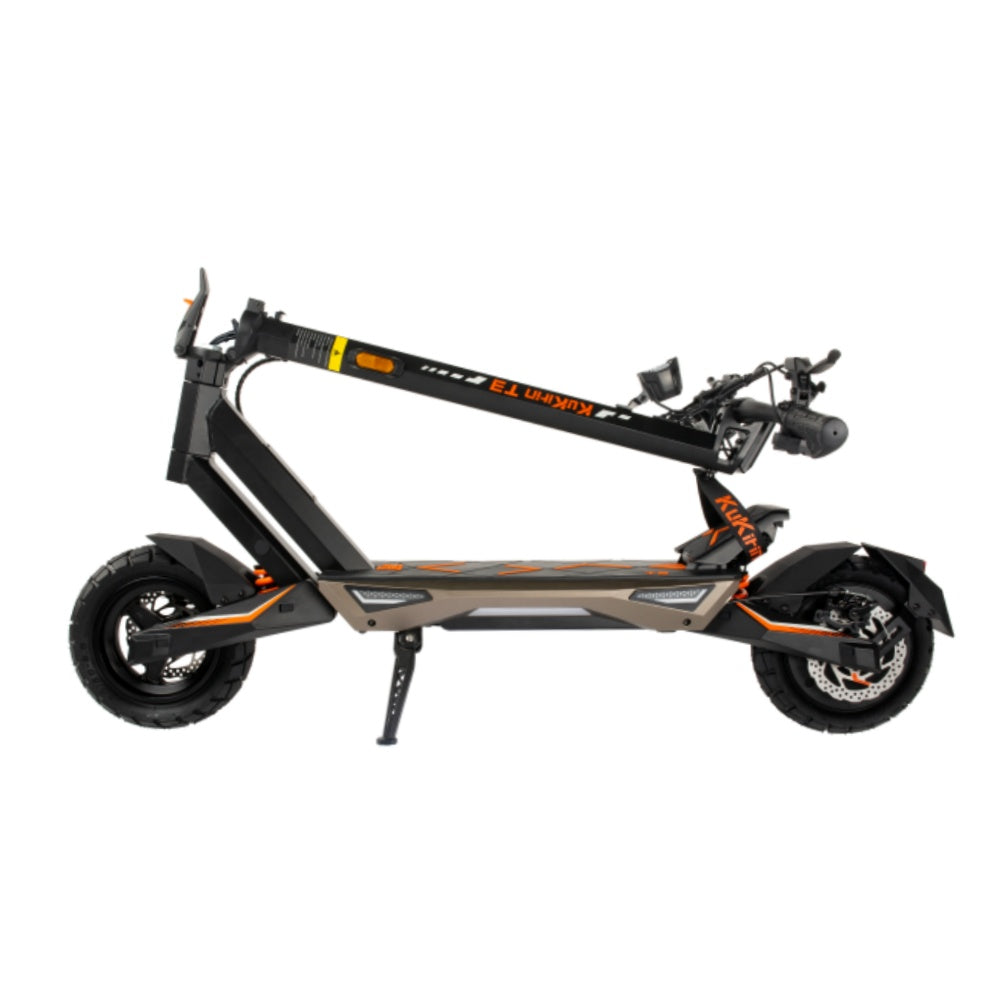

Product Size(L x W x H): 1230*640*620mm (Fold)
Package Size(L x W x H): 1250*250*620mm
Package Contents 1 x Electric scooter
1 x Charger
1 x Toolkit
2 x Keys
1 x User Manual
