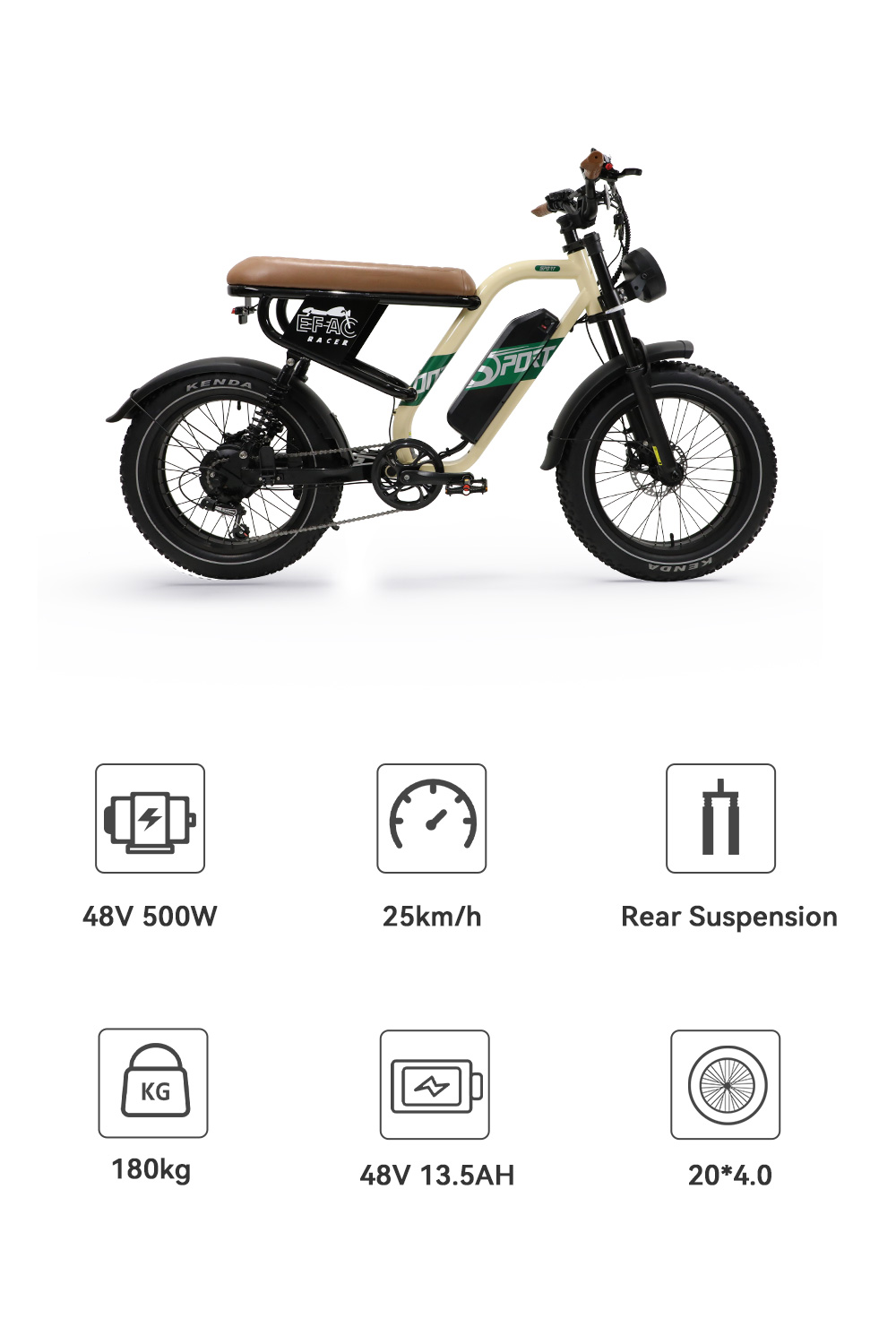

48V 500W fat tire e-bike with up to 100km assisted range
-
Hydraulic brakes + 20×4.0″ all-terrain tires for safe, stable riding
-
30° climbing ability and 160–200cm rider height support
-
48V 13.5Ah battery with Bluetooth APP and 7-speed gearing
-
Strong 180kg load capacity, IPX4 water-resistant
-

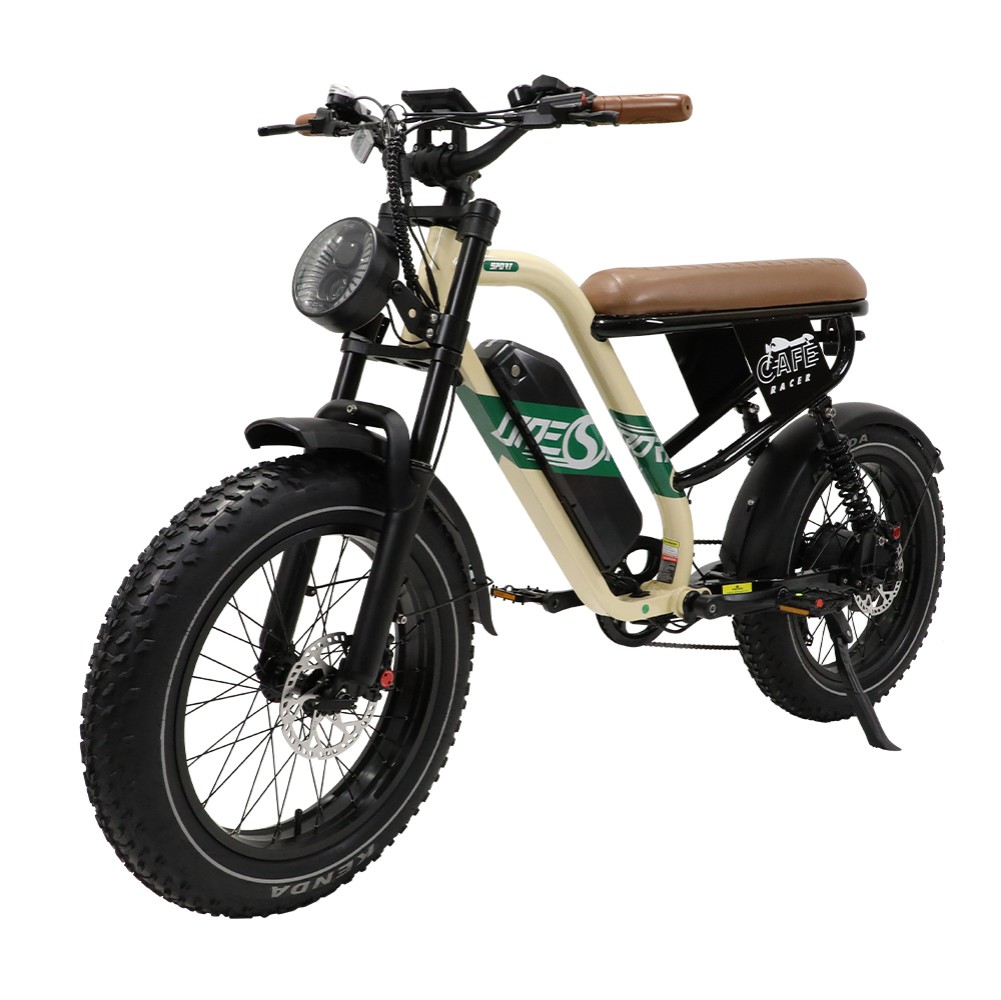

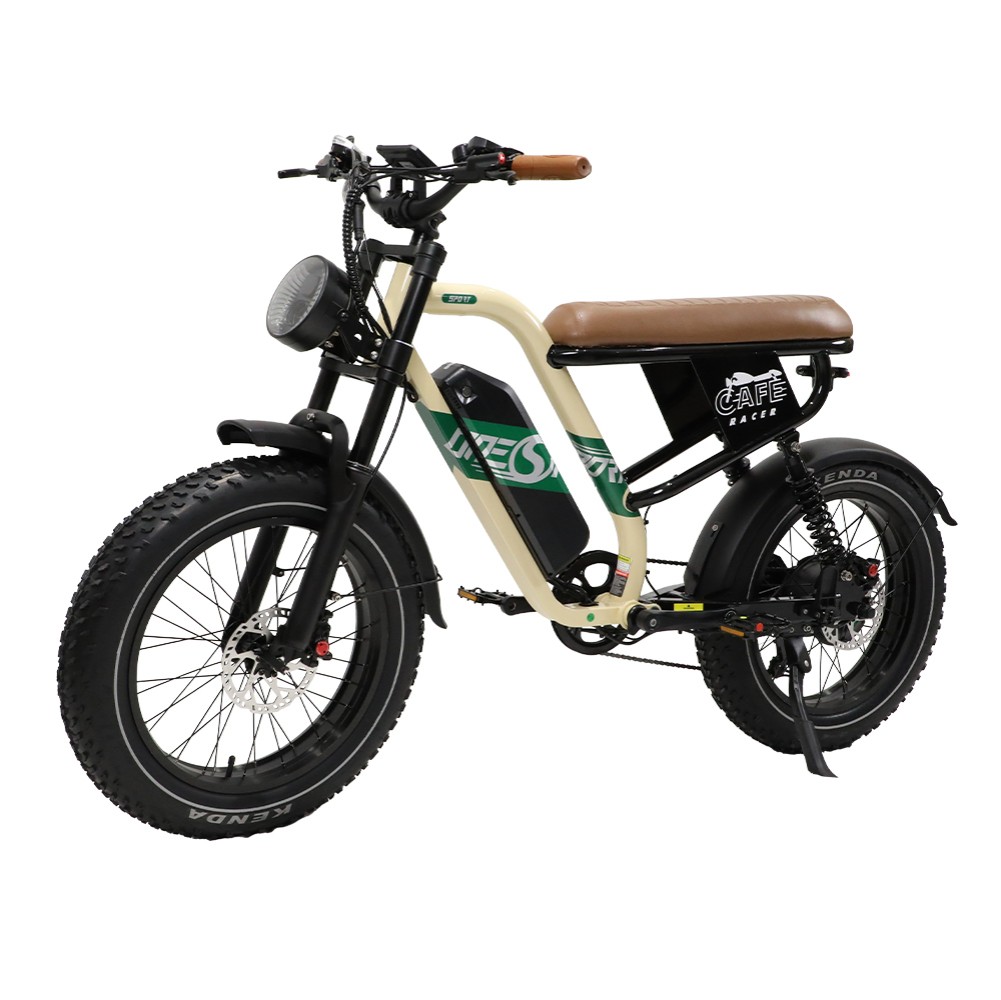

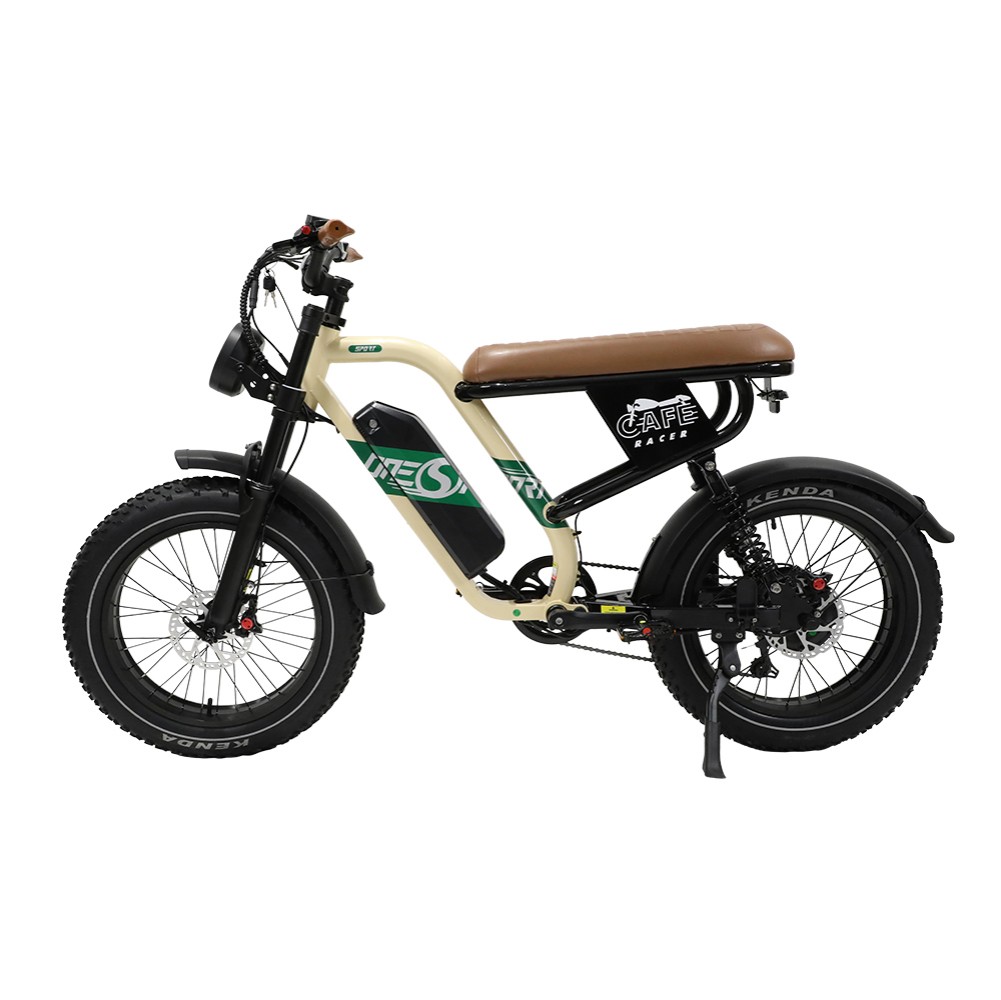

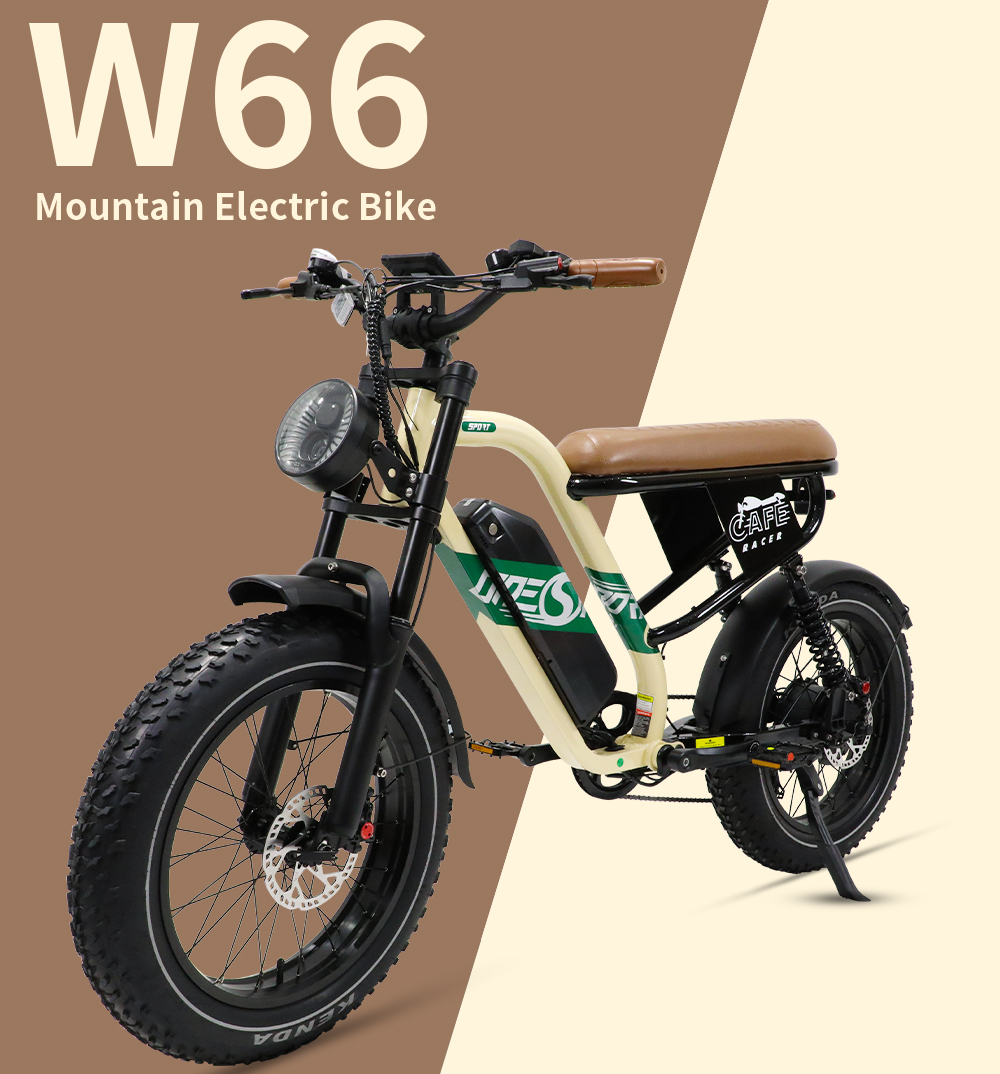

ONESPORT W66 Fat-Tire E-bike
€ 949.99
Description

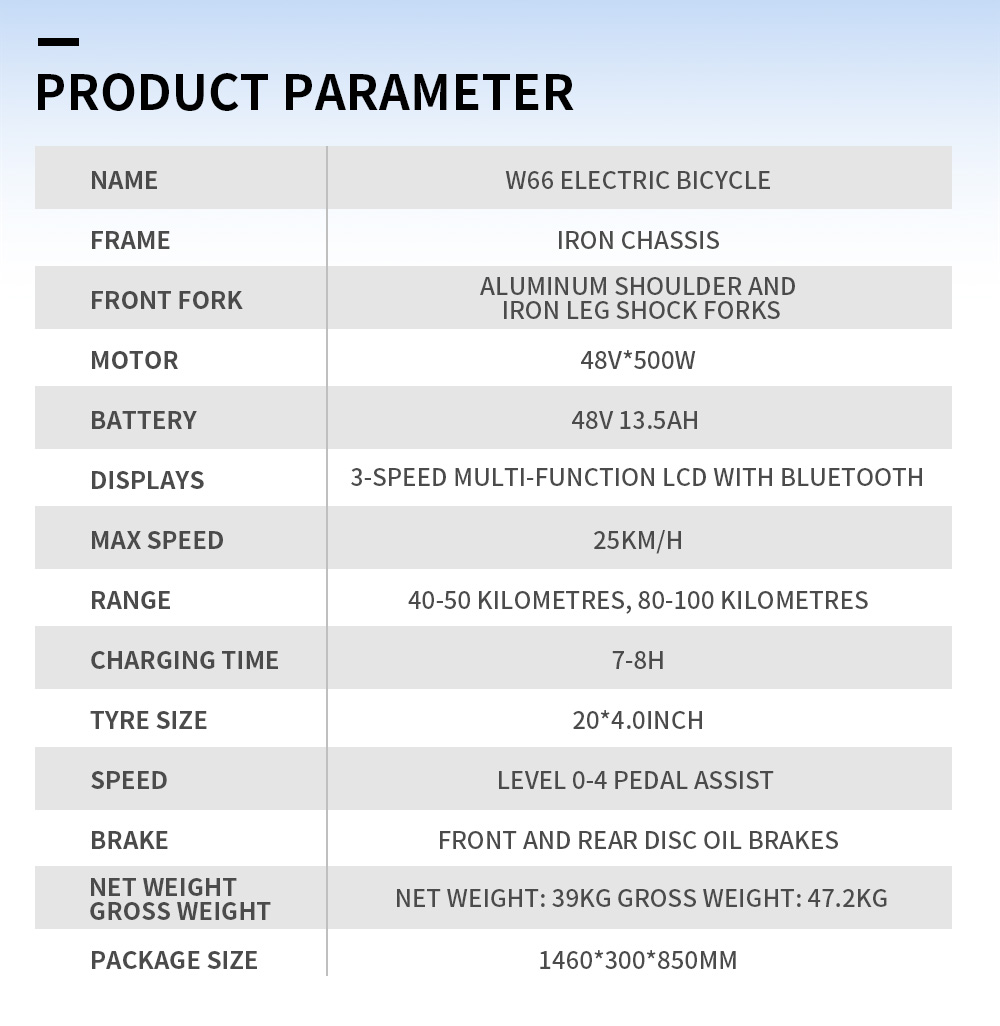

ONESPORT Product Specification Sheet – W66-WBT
| Item | Specification |
|---|---|
| Frame | Steel frame |
| Color | Cream |

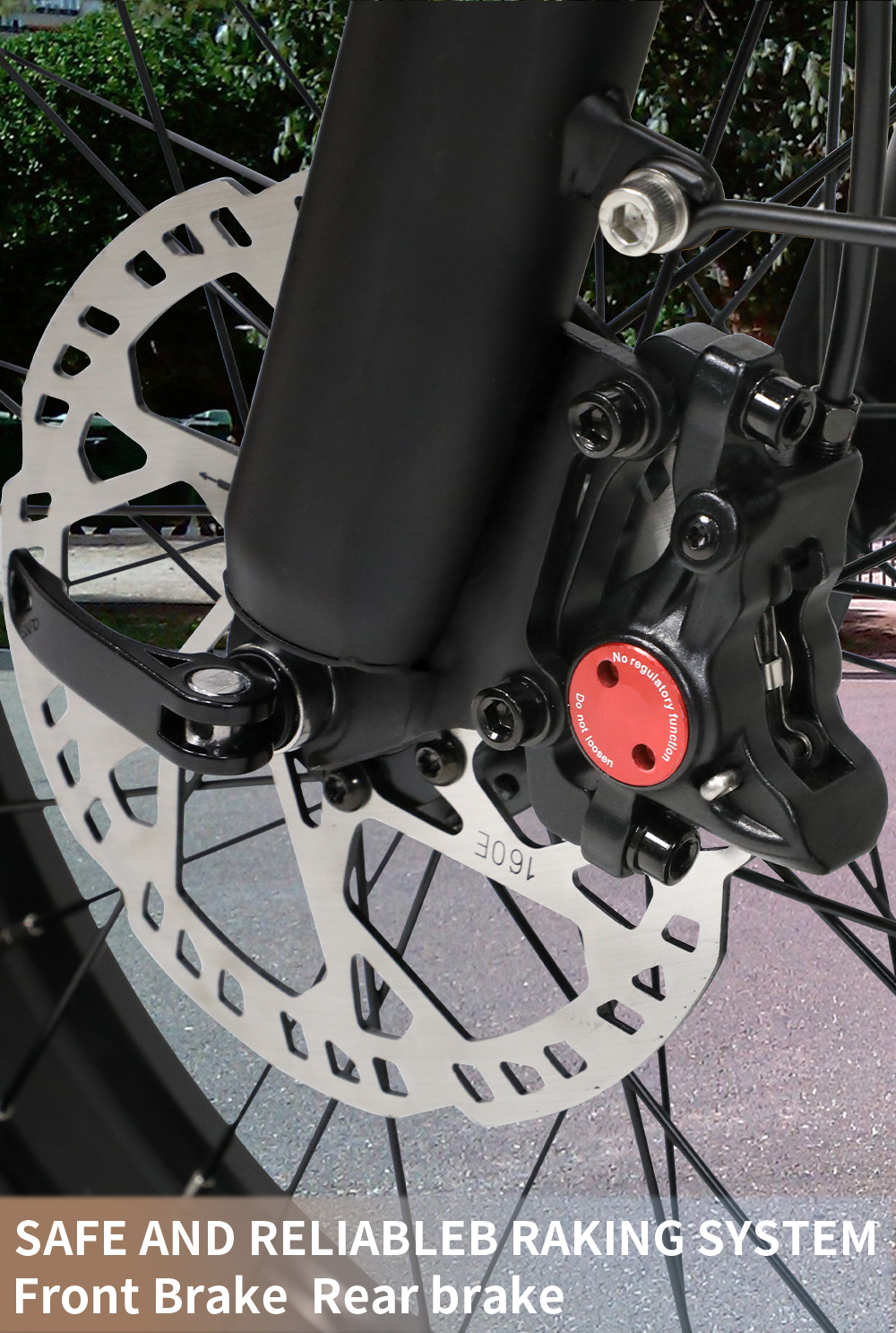

| Brakes | Left/right power-cut brake levers; front & rear hydraulic disc brakes; 180 mm rotors |

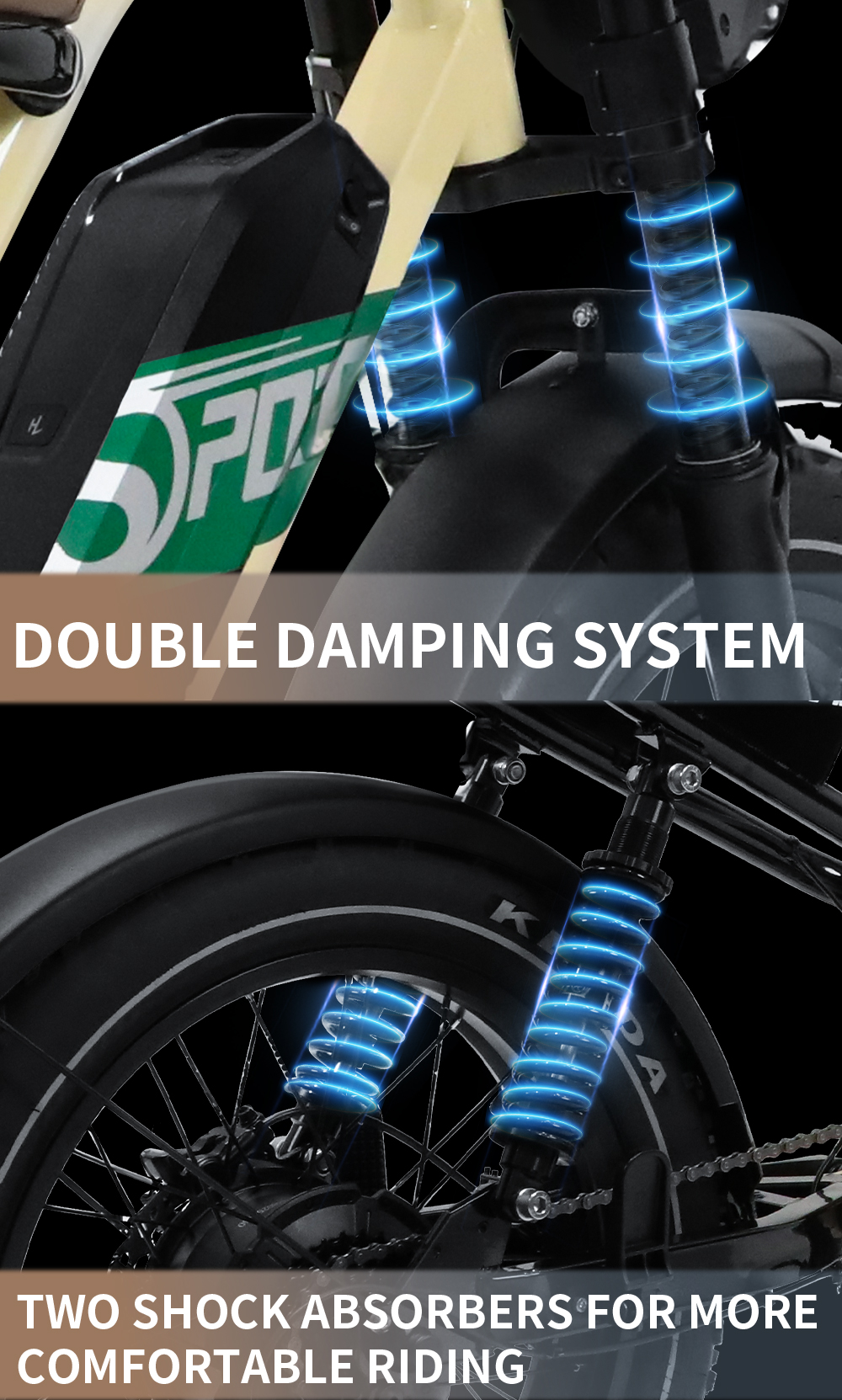

| Front Fork | Suspension fork with aluminum crown and steel legs |
| Foldable | No |
| Range | Pure electric: approx. 40–50 km |
| Pedal-assist: approx. 80–100 km | |
| (Actual performance varies with temperature, terrain, rider weight, etc.) | |
| Speed | Factory-set to 25 km/h; speed limit can be unlocked. |
| (When set to 25 km/h, the motor stops assisting at the legal maximum speed. You can still exceed the limit using pedal power. This limit is set according to local regulations.) | |
| Net Weight | ≈39 kg (tolerance ±3%–5%) |
| Gross Weight | ≈47.2 kg (tolerance ±3%–6%) |

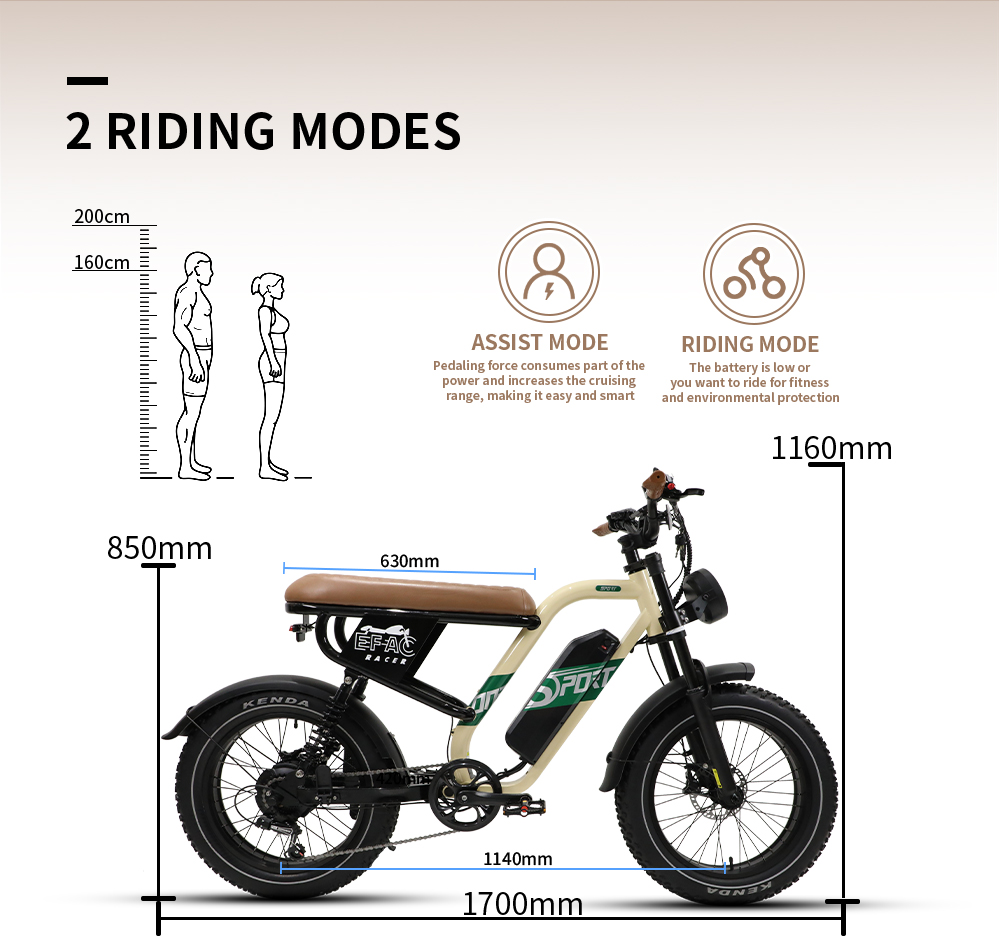

| Product Size | 1700 × 1160 × 680 mm |
| Packaging Size | 1460 × 300 × 850 mm |

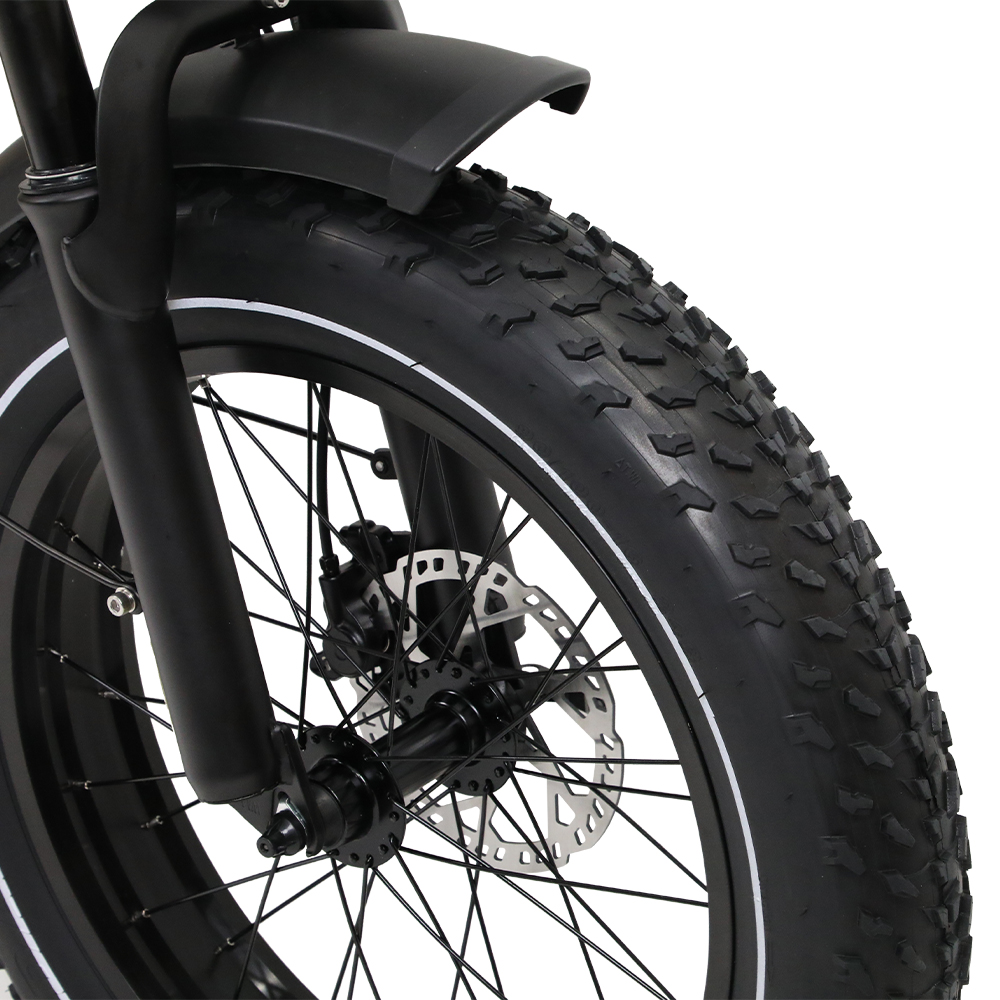

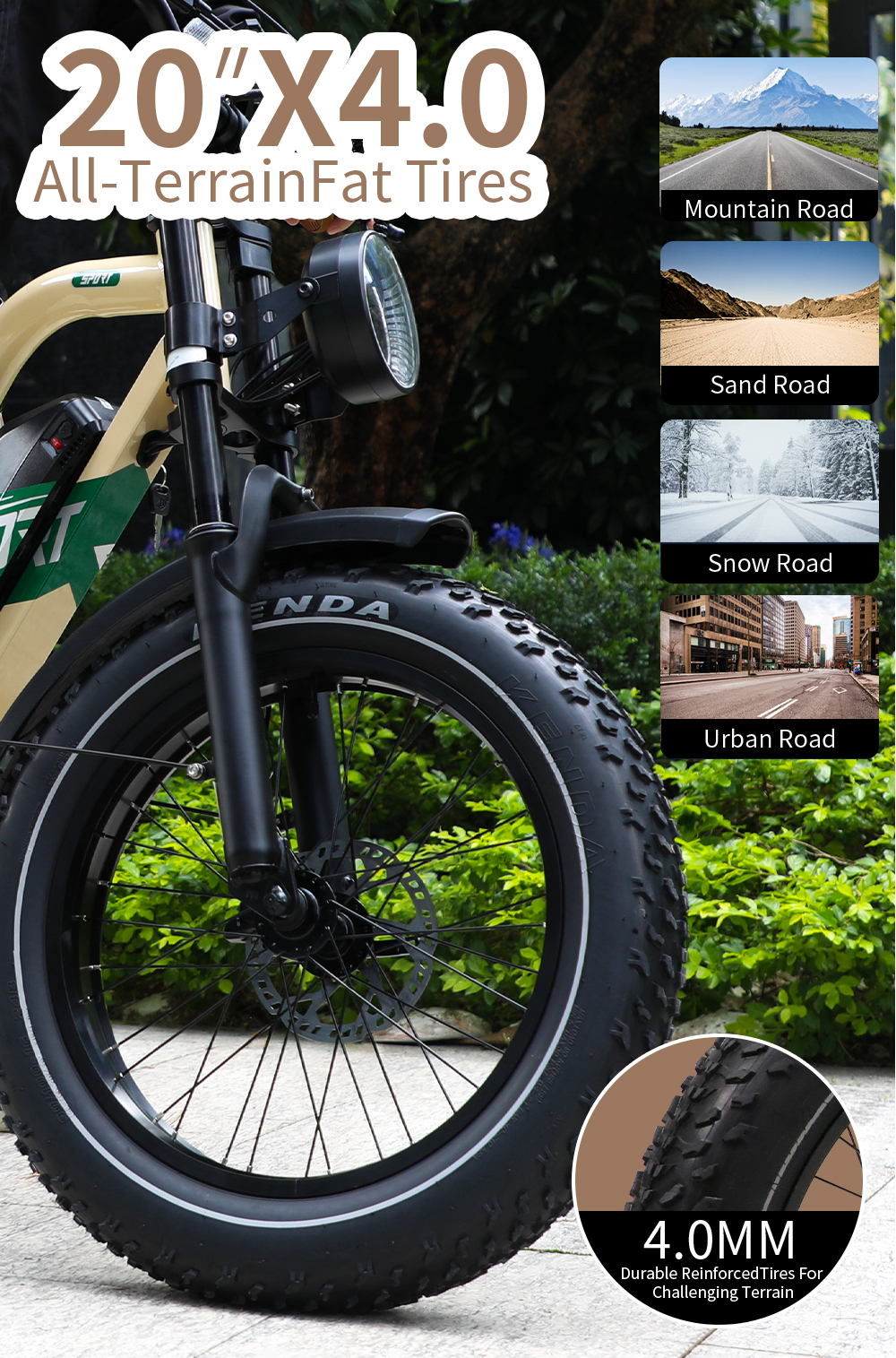

| Tire Size | 20 × 4.0 inches |
| Pedal Assist System | JINHUI PAS |
| Assist Levels | 0–4 levels |
| Climbing Ability | Max 30° (suitable for moderate urban slopes) |
| Recommended Rider Height | 160–200 cm |
| Max Load Capacity | 180 kg |
| Waterproof Rating | IPX4 (splash-proof, light rain OK; do not spray directly with water or ride in heavy rain) |
| Package Contents | Complete bike, 16-in-1 tool kit, air pump, user manual, charger, half-twist throttle, bell, phone-holder pouch |

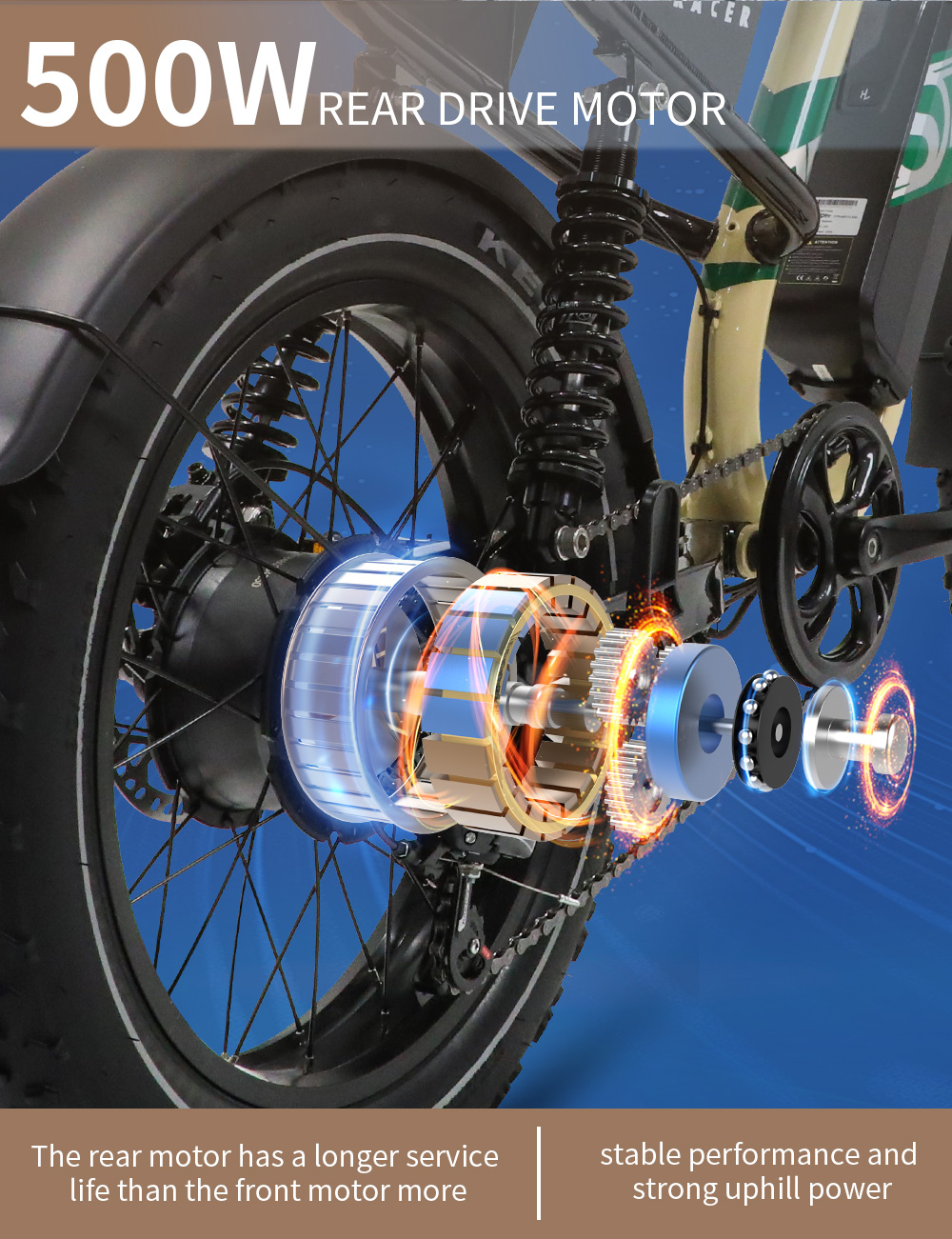

| Motor | 48V 500W |
| Torque | 65 Nm |
| Sensor | Speed sensor |
| Battery | 48V 13.5Ah (EVE 21700 cells) |
| Charger | 54.6V 2A |
| Charging Time | 7–8 hours |

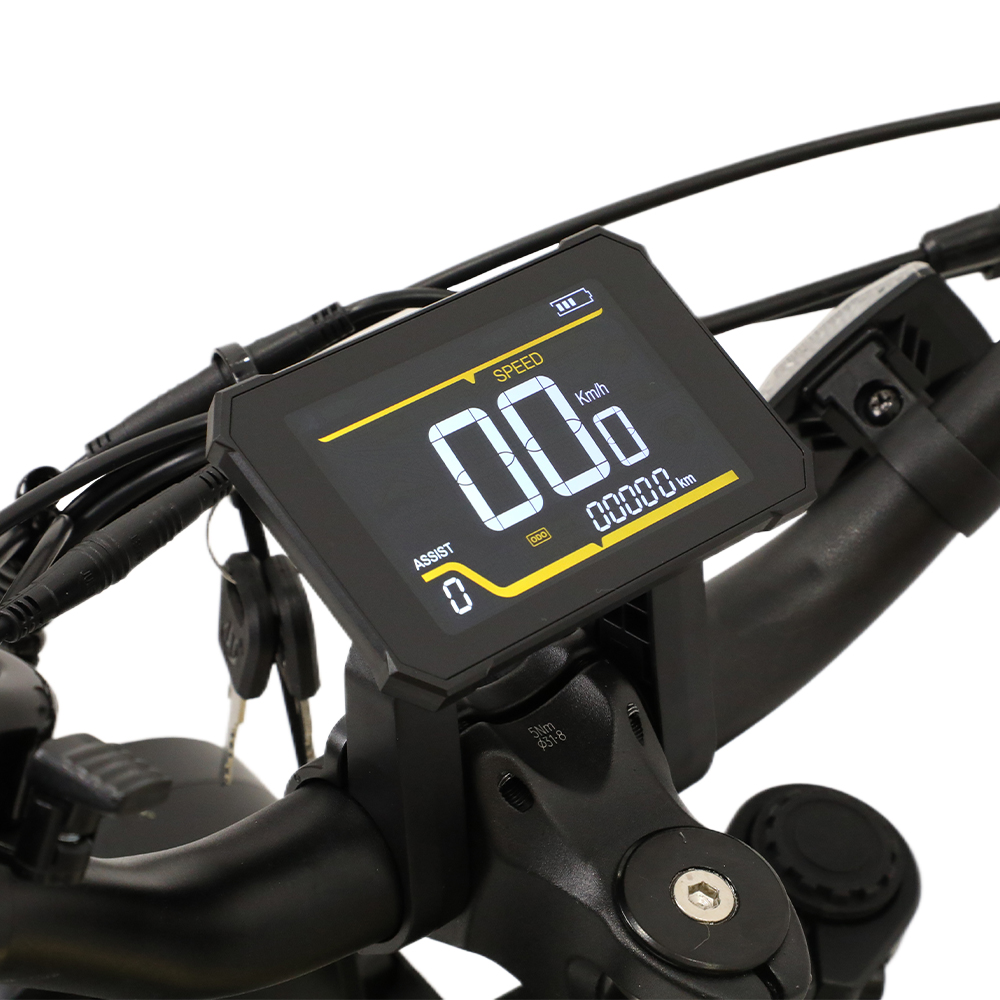

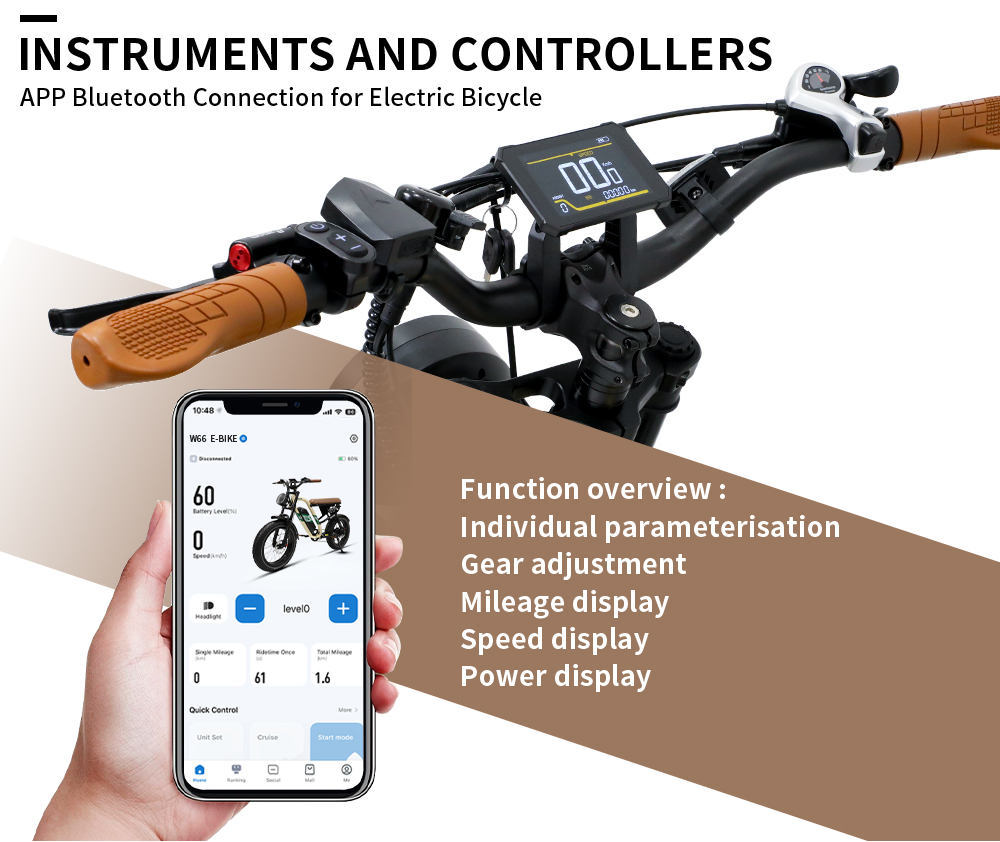

| Bluetooth App | Supports APP via Bluetooth connection |
| Mechanical Gears | 1×7-speed |

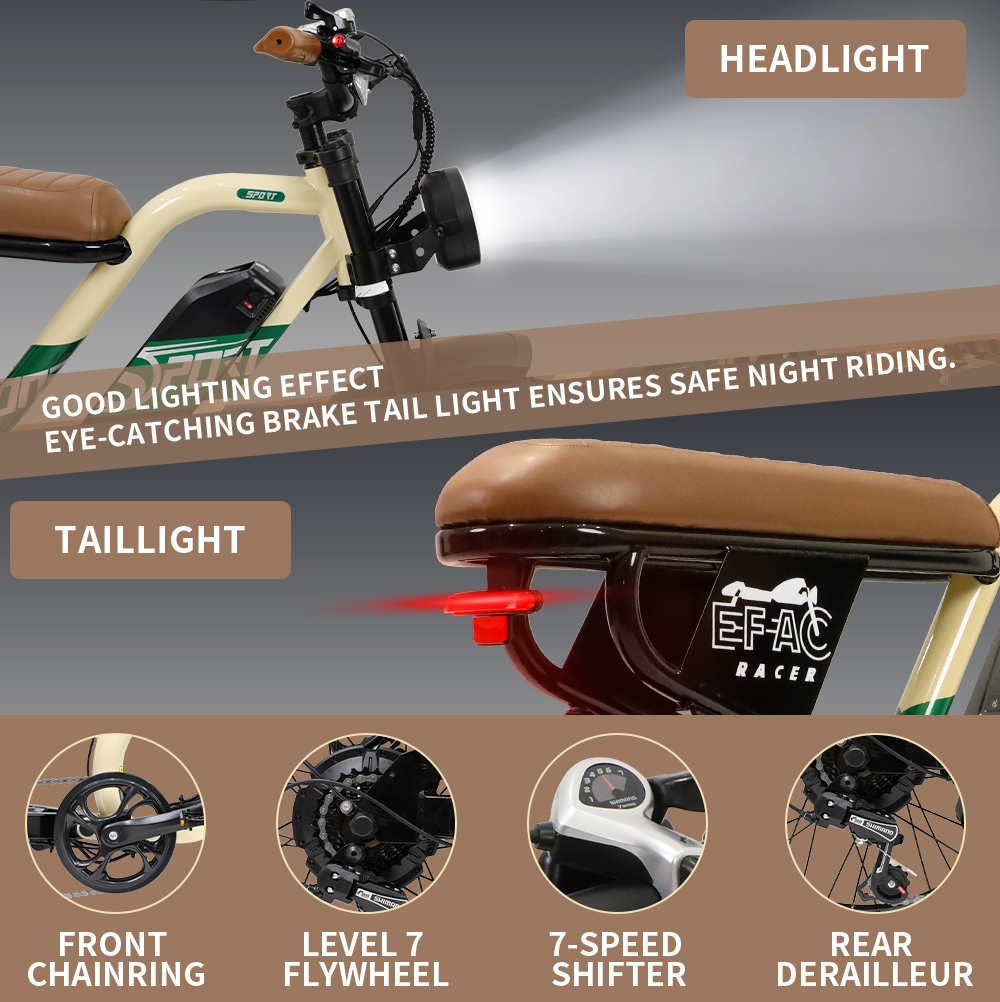

| Taillight | With brake light, high-brightness under braking, K-MARK certified |
